In the vast networks of industrial pipelines that move oil, gas, water, food products, and chemicals, cleanliness and efficiency are non-negotiable. Over time, residues, deposits, or even corrosion can compromise the flow and safety of these pipelines. One of the most effective methods to combat such issues is the pigging process. But what exactly is it? How does it work? And why has it become indispensable across various industries?
This article offers a comprehensive overview of the pigging process, its components, and its applications across sectors—explained in a way that’s accessible yet technically accurate.
Understanding the Pigging Process
The pigging process involves inserting a device known as a “pig” into a pipeline to perform specific tasks like cleaning, product separation, inspection, or recovery. As the pig travels through the pipeline—propelled by fluid pressure or gas—it performs its function without interrupting the flow of product.
The word “pig” might sound odd in an engineering context, but its origin is commonly attributed to the squealing sound that early pigs made as they scraped against pipeline walls.
Why Is the Pigging Process Used?
The pigging process serves multiple purposes:
- Pipeline Cleaning: Removes wax, scale, sludge, or other debris that restricts flow.
- Product Separation: Prevents mixing of different products (especially in batch pipelines).
- Inspection and Monitoring: Identifies defects such as cracks, corrosion, and weld faults.
- Product Recovery: Pushes remaining product out of the pipeline, reducing waste.
Because it improves flow efficiency and reduces contamination, the pigging process is an essential part of regular pipeline maintenance.
See also: Navigating Computer Repair: The Essential Guide to Tech Insurance Claims
Key Components of the Pigging Process
The pigging process relies on a combination of tools and mechanisms that work together to insert, move, and retrieve the pig. Here’s a breakdown of the core components:

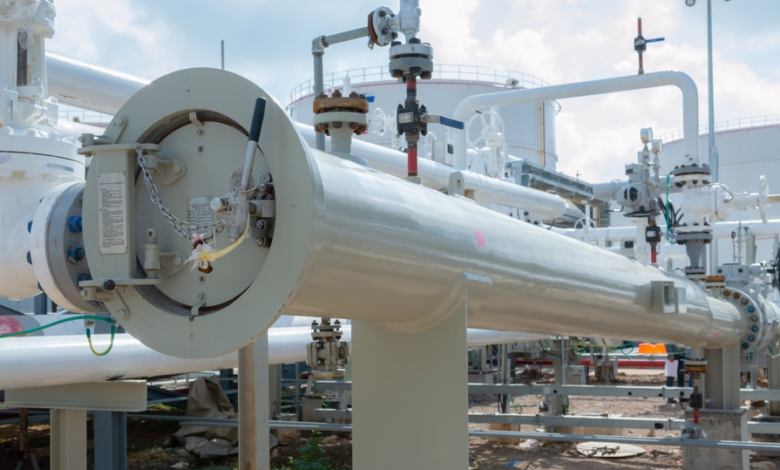

1. Pig Launcher
This is the entry point of the pig into the pipeline. The pig launcher is a pressurized chamber that allows the pig to be safely inserted without stopping the flow of product.
2. Pig Receiver
At the end of the pipeline, the receiver safely collects the pig once it has completed its job. This is also a pressurized chamber and must be handled with care.
3. The Pig
The pig itself comes in various types, depending on the purpose. It may be made of foam, have metal or rubber parts, brushes, or even be equipped with sensors and data collection systems.
4. Pressure Source
Most pigs are moved through the pipeline by the product itself (like oil or gas), but in some cases, an external source—like compressed air or nitrogen—is used.
5. Control Valves and Monitoring Systems
Operators use these to control pressure, manage flow direction, and track the pig’s progress through the pipeline.
How the Pigging Process Works
Let’s walk through the typical steps involved in the pigging process:
Step 1: Preparation
Before pigging starts, operators assess the pipeline and select the appropriate type of pig. The system is isolated and depressurized in the area where the pig will be launched.
Step 2: Insertion
The pig is inserted into the pig launcher. Once the launcher is sealed and pressure is equalized with the pipeline, the pig is released.
Step 3: Propulsion
The pig is propelled through the pipeline by fluid or gas pressure. As it moves, it either cleans the pipe walls, separates products, or collects data.
Step 4: Tracking
Depending on the length and complexity of the pipeline, the pig’s progress may be tracked using acoustic devices, magnetic sensors, or GPS (for smart pigs).
Step 5: Retrieval
When the pig reaches the end of the line, it enters the pig receiver. It is then safely removed and inspected. In smart pigging, data is downloaded and analyzed to assess the pipeline’s condition.
Types of Pigs Used in the Pigging Process
To understand the pigging process fully, it’s important to know the different types of pigs and their applications:
✅ Foam Pigs
Lightweight and flexible, foam pigs are used in low-pressure systems or in pipelines with complex geometry. They’re excellent for drying, cleaning, and product removal.
✅ Cup and Disc Pigs
These have rubber components that create a tight seal inside the pipeline. Ideal for pushing fluids or scraping off moderate buildup.
✅ Brush Pigs
Equipped with wire brushes, these pigs aggressively clean hard deposits from pipeline walls.
✅ Smart Pigs
Also known as intelligent pigs, these are packed with sensors and electronics. They inspect the pipeline for corrosion, cracks, dents, and thickness loss using technologies like ultrasonic testing and magnetic flux leakage.
✅ Gel Pigs and Spheres
Used in delicate or irregular pipelines where standard pigs may not be suitable. They are also useful for dewatering or gentle product pushing.
Future Outlook of the Pigging Process
As industries become more focused on data, automation, and sustainability, the pigging process is also evolving:
- Real-time Monitoring: Smart pigs now provide live data for predictive maintenance.
- Automated Pigging Systems: New systems reduce manual labor and improve consistency.
- Eco-Friendly Materials: Pigs are being made from recyclable or biodegradable materials.
- IoT Integration: Pipeline networks can now integrate pigging data into cloud-based systems for remote access and analysis.
Conclusion
The pigging process is far more than a cleaning tool—it’s a cornerstone of modern pipeline management. From product recovery to smart inspections, pigging has become a multi-purpose solution that boosts efficiency, ensures safety, and minimizes waste across a broad range of industries.
As technology advances, the pigging process is expected to become even more precise, automated, and indispensable. Whether you’re managing a food production facility or a cross-country gas line, integrating a pigging process can dramatically improve operational outcomes and reduce long-term costs.
